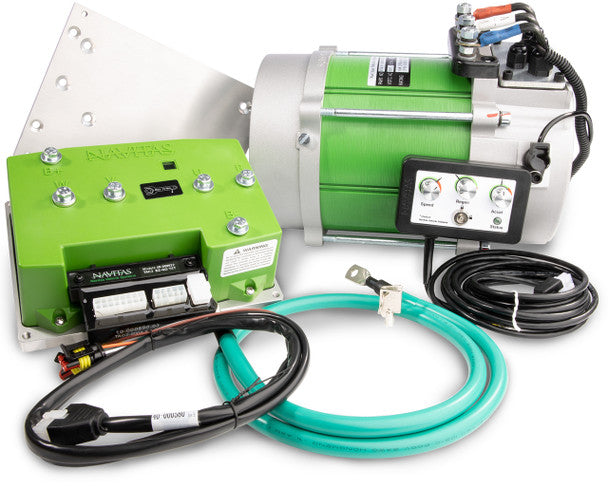

Navitas EZGO 5KW DC to AC Conversion Kit w/ OTF Programmer

Take your EZGO golf cart to the next level with a Navitas DC to AC conversion kit. The Navitas TAC2 DC to AC kit is engineered to significantly increase your golf carts torque, top speed and acceleration.  Easily adjust your acceleration, maximum speed and regenerative braking with the turn of a knob using the included on-the-fly (OTF) programmer or review your carts diagnostic data using the Bluetooth enabled app.

The Navitas TAC2 600A 48V-72V DC to AC Conversion Kit includes is a fully-programmable 600A AC controller with a 5 KW Navitas AC motor and an On-The-Fly Programmer. This kit also includes an OEM direct Connector, mounting plate and a auxiliary harnessing for a hassle free installation. The kit is compatible with Curtis 1206HB or 1268 ITS OEM controllers.

Kit Features:

• 600A state of the art Mosfet technology
• Bluetooth programmable w/mobile app
• Fully sealed IP5X
• Motor thermal protection
• OEM multi-platform mounting options
• One button cart lock-out
• On-The-Fly (OTF) programming
• Regenerative braking
• Rollback protection
• Speed-limiting ability
• Thermal protection
• Variable acceleration rate
• Variable maximum speed control
• Variable regen control

Kit Includes:

EZGO TXT (Curtis 1206HB)

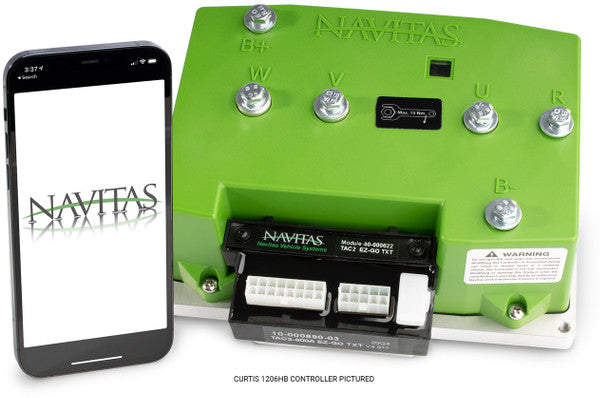

• TAC2 Controller 600A w/ Bluetooth
• TAC2 TXT48 Curtis 1206HB Module (Installed)

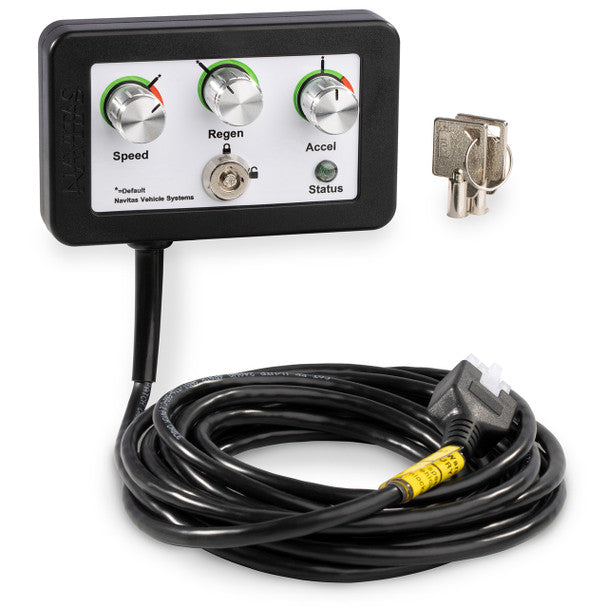

• OTF1.0 Programmer (3.75m cable)
• Hardware Mounting Kit
• Navitas 5KW (19T) AC Motor
• AC Motor Phase Cable
• Motor Sensor Cable
• Run/Tow Switch Mounting Plate

EZGO S4/L6/MPT (Curtis 1268 ITS)

• TAC2 Controller 600A w/ Bluetooth
• TAC2 Curtis 1268 ITS Module (Installed)
• OTF1.0 Programmer (3.75m cable)
• Navitas 5KW (19T) AC Motor
• AC Motor Phase Cable
• Motor Sensor Cable
• Hardware Mounting Kit

Battery Voltage:

• 48 - 72 Volts

Output Capability:

• 600A

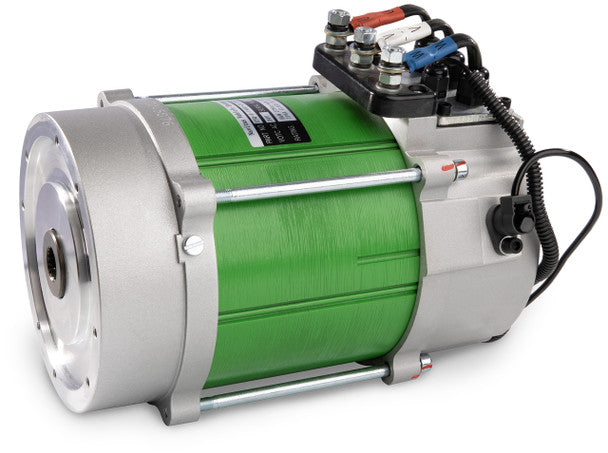

5 KW Navitas AC Motor Features

• High performance AC induction motor
• External speed sensor
• Internal Temperature sensor
• Steel and aluminum construction
• High torque & speed

5 KW Navitas AC Motor Technical Specifications

• Type of Motor: AC Induction
• Rated Power: 5KW
• Rated Voltage: 34V (AC)
• Rated Current: 113A
• RPM: 0~5785 r/min
• Splines: 19
• Insulation Class: H
• Protection Mode: IP44
